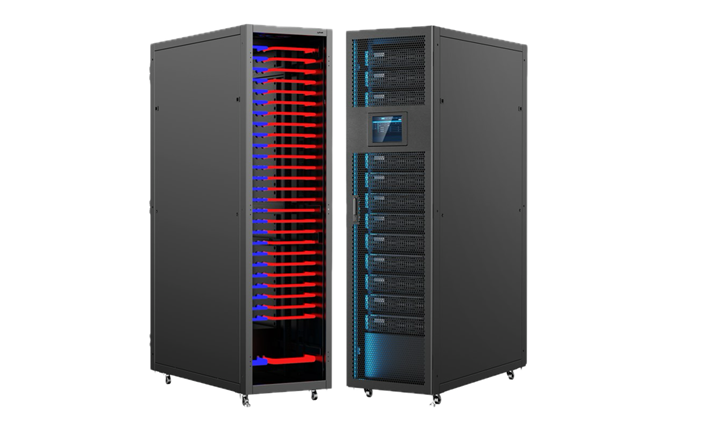

Single row CR6000-LC series SMART POD

SMART POD liquid cooled micro module supporting infrastructure solution is CR6000-LC series supercomputing data center specific solution, is specially used for liquid cooled server, adopts the mixed cooling mode of air cooling and liquid cooling, the main heat source CPU in the server is cooled by liquid cold plate, the other heat sources are still cooled by air cooling. The average annual PUE can be reduced to less than 1.1.

  • “ Building blocks ” Mode deployment

  • Independent intelligent monitoring management

  • POD supports elastic expansion

  • 256 cards deployed in 5 cabinets

  • 100KW power consumption of a single cabinet

Application scenario

  • Supercomputer Center

  • Data Center

  • Machine Room
Mainly used in small, medium and large types of supercomputing centers, high-density data centers; Data centers that require the overall PUE value of the data center to be below 1.1; Building high-density data centers with limited room space;
Data centers with requirements for data center advancement, energy saving and noise; A data center that has requirements for the aesthetics and accessibility of the equipment room.
    Technical specification
    Name Specifications
    Centralized management Single cabinet power environment monitoring and server monitoring
    Display 13.3-inch touch screen (1400mm optional)
    Maximum power supply 4* (96kW (no redundancy), 2x44kW(2 redundant modules))
    Power module efficiency 96%
    Rack CDU cooling capacity 4*100kW
    Inlet water temperature 20℃~45℃
    System cooling Cold plate liquid cooling + backplane evaporative cooling (optional)
    Cabinet depth 1200/1400mm
    Cabinet height 2200mm
    Cabinet bearing > 3100kg
    Input voltage AC380/DC240V
    Input routes Two AC or one AC+ one DC
    Input AC voltage range 180 Vac to 264 Vac
    Input frequency range 45Hz to 65Hz
    Input DC voltage range 180Vdc to 320Vdc
    Output rated voltage DC54V
    Operating temperature 5℃~40℃
    Working humidity 8% ~ 90%
    Working altitude ≤ 3050m
